Description
Give that Raptor some much needed lighting with these KR Off-Road Triple Fog Light Brackets. There stainless steel brackets are made out of 12 gauge stainless steel. Powder coated black to ensure a durable finish, these heavy-duty brackets feature multiple mounting positions ensuring your brackets not only stay on the truck, but offer you adjust-ability as well. They will fit most brands of LED Auxiliary lighting.
Features
- 12 Gauge #304 Stainless Steel
- Powder Coated Black Finish
- Bolt-On Installation
- Designed & Manufactured in the USA
Includes:
- 1 Pair of Brackets
- Instructions
Fitment:
- 2021-2023 Ford F-150 Raptor
- 2024+ Ford F-150 Raptor (SEE NOTE)
- NOTE: On the 2024 Raptor R & Raptor 37 Package the outer most front parking sensors will need to be disconnected which will cause an error on the dash. Ford built the front sensor into the factory fog bracket and our bracket replaces this. We are currently working on developing a mount for the sensors. While our fog kit WILL fit these trucks, the 2 sensors will not currently mount up anywhere.
Warranty:
- Lifetime Warranty for the original owner.
Note: Lights are not included.
Optional Wiring Harness: Add our optional wiring harness which will allow you to connect your Baja Designs or Rigid Industries lights to your OEM upfitters.
- Baja Designs: This harness has 3x Weatherpack (WP) 2-pin connectors pre-installed (on each side) which will plug into 3 pairs of Baja Designs lights. The other side has 3x weatherproof/heat shrinkable wire connectors for quick termination to OEM auxiliary switches (along with a ground ring terminal)
- Diode Dynamics (3x SS3 without Backlight): This harness has 3x Deutsch (DT) 2-pin connectors pre-installed (on each side) which will plug into 3 pairs of Diode Dynamics SS3 lights. The other side has 3x weatherproof/heat shrinkable wire connectors for quick termination to OEM auxiliary switches (along with a ground ring terminal)
- Diode Dynamics (3x SS3/SSC2 with Backlight): This harness has 3x Deutsch (DT) 4-pin connector pre-installed (on each side) which will plug into 3 pairs of Diode Dynamics SS3/SSC2 lights with backlight. The other side has 4x weatherproof/heat shrinkable wire connectors for quick termination to OEM auxiliary switches (along with a ground ring terminal). 3 of the wires are for the 3x pairs of lights with the 4th wire being the SS3/SSC2 back-light control cable (which activates the back-light on all of the SS3/SSC2 lights).
- Diode Dynamics (2x SS3 & 1x SSC2): This harness has 2x Deutsch (DT) 2-pin connectors & 1x Deutsch (DT) 4-pin connector pre-installed (on each side) which will plug into 2 pairs of Diode Dynamics SS3 lights & 1 pair of Diode Dynamics SSC2 lights. The other side has 4x weatherproof/heat shrinkable wire connectors for quick termination to OEM auxiliary switches (along with a ground ring terminal). 3 of the wires are for the 3x pairs of lights with the 4th wire being the SSC2 back-light control cable (which activates the back-light on all of the SSC2 lights).
- Diode Dynamics (1x SS3 & 2x SSC2): This harness has 1x Deutsch (DT) 2-pin connectors & 2x Deutsch (DT) 4-pin connector pre-installed (on each side) which will plug into 1 pair of Diode Dynamics SS3 lights & 2 pairs of Diode Dynamics SSC2 lights. The other side has 4x weatherproof/heat shrinkable wire connectors for quick termination to OEM auxiliary switches (along with a ground ring terminal). 3 of the wires are for the 3x pairs of lights with the 4th wire being the SSC2 back-light control cable (which activates the back-light on all of the SSC2 lights).
- Rigid Industries D-Series: This harness has 3x Deutsch (DT) 2-pin connectors pre-installed (on each side) which will plug into 3 pairs of Rigid Industries D-Series lights. The other side has 3x weatherproof/heat shrinkable wire connectors for quick termination to OEM auxiliary switches (along with a ground ring terminal).
- Rigid Industries Radiance: This harness has 9x (on each side) weatherproof/heat shrinkable wires which terminate onto the Rigid Industries Radiance Light wires. The other side has 4x weatherproof/heat shrinkable wire connectors for quick termination to OEM auxiliary switches (along with a ground ring terminal). 3 of the wires are for the 3x pairs of lights with the 4th wire being the Radiance back-light control cable (which activates the back-light on all of the Radiance lights).
Optional Extension Brackets: These optional brackets will allow you to mount your Baja Designs S2/Squadron lights right-side up (so that the product logo and/lenses are not upside down). With most bracket kits the lights are mounted upside down. This solves that issue. (These will not work with S1 lights however)
Extension Brackets for Baja Designs
Extension Brackets for Rigid D-Series

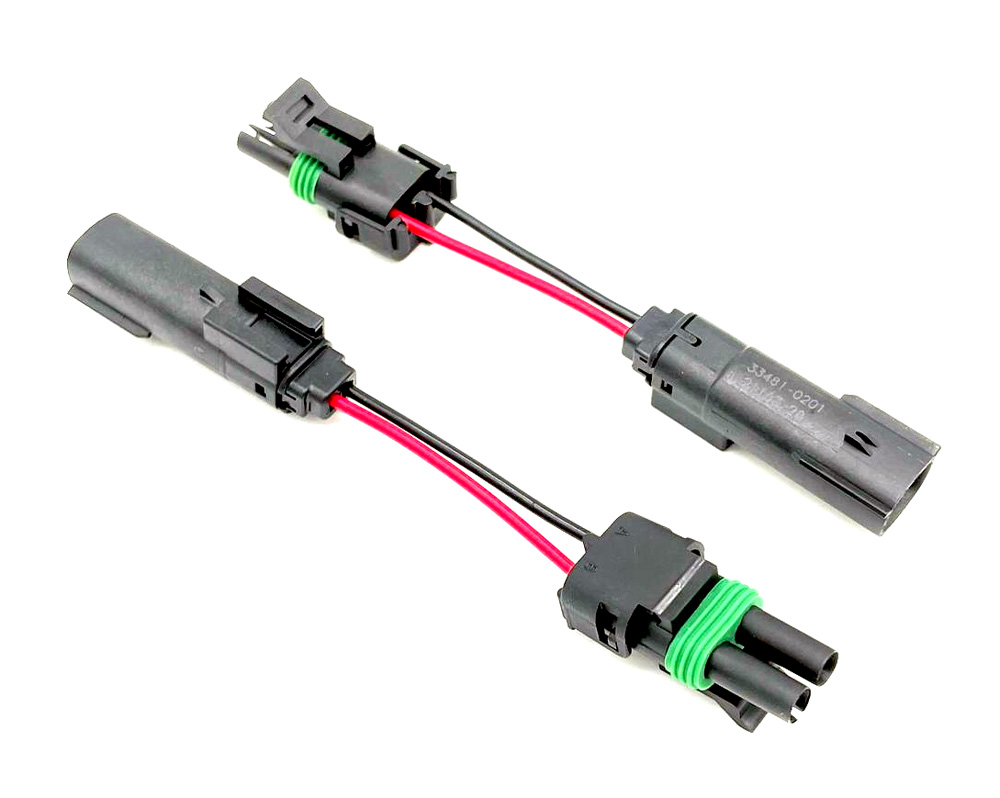

Optional OEM Fog Light Pigtail: If you have factory fog lights and you'd like to maintain functionality of your fog light switch on the dash, you'll want to add on our OEM Fog Light Pigtails. These come as a pair and allow you to connect 1 pair of lights (1 on each side) to your factory fog light wire. Weatherpack connectors are found on Baja Designs lights. Deutsch connectors are found on Diode Dynamics, Rigid Industries D-Series, Diode Dynamics SS3 (with or without backlighting) & Morimoto 4Bangers. You'll receive two (2) pairs of pigtails (which will support connecting the lights to the factory fog switch and the aux1 switch)
