Description

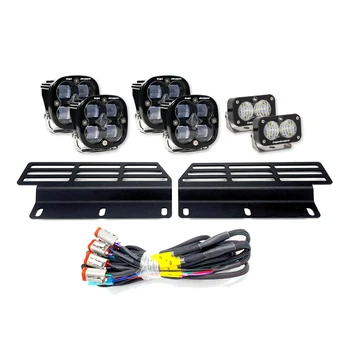

Give that Bronco some much needed lighting with this Triple Fog Light Kit for the 2021+ Ford Bronco. We pair our KR Off-Road Triple Fog Light Brackets with your choice of three pairs of Baja Designs lights, for the ultimate fog light setup.
The KR Off-Road brackets are made out of 12 gauge stainless steel and are powder coated black. The bezel style/flush mount design gives that fog opening a finished look while giving you adjustability in where the lights aim.
Included are the following:
- 1 Pair of KR Off-Road Triple Fog Light Brackets
- 3 Pairs of Baja Designs Lights
- Wiring Harness
- Instructions
- Our Lifetime Guarantee. For as long as you own your Bronco, if you manage to break/bend/destroy the KR Off-Road brackets we'll replace them free of charge (not including return shipping)
NOTE: The HD Modular Bumper uses a Torx Plus 40 (TP40) socket. Please do not use a Torx 40 (T40) socket (you could strip your bolts). Ford did not provide this bit in your tool set. They only provided a TP30 and TP50 bit. If you'd like to add-on a TP40 bit please click here.
HOW TO ORDER
First you want to select your light choices from the drop-down. We allow you to select whatever combination of lights you want.
Second, select the wiring method you want to use
- All-In-One Upfitter Harness: If your Bronco is equipped with the factory overhead switch panel select the All-In-One Upfitter Harness. Our all-in-one harness allows you to connect the three pairs of lights to 3 different upfitter switches. Ford has left the powered upfitter wires in your engine bay for you, so our harness simply crimps onto the existing Ford upfitter wires.
- Bronco Raptor Harness: If you have a Bronco Raptor your kit will include 2 pairs of pigtails that utilize the factory wiring that went to the Rigid Fog Lights. One set go to the factory fog switch and the 2nd set go to Aux 1. There will be another harness included in your kit that will plug into the last pair of lights which will go to an upfitter switch.
- Note: If your Bronco does not have the overhead upfitter switches it's recommended to select the "All-In-One Upfitter Harness" and purchase a 3rd party switch module (such as the AuxBeam system from our site). You can also install your own switches as well.
RECOMMENDATION #1 (Street Legal Setup)
- Squadron SAE, Wide Cornering
- S2 Sport, Driving/Combo
- S2 Sport, Spot
Squadron SAE Wide Cornering lights will give you a street legal output. These would act as your normal fog lights, which you can leave on all the time.
S2 Sport, Driving/Combo is equipped with both a wide cornering and spot pattern which provides a nice blend of light for both near field applications and distance lighting.
S2 Sport, Spot is a longer and narrower beam that focuses the light down the trail or road.
RECOMMENDATION #2 (Best Street Legal Setup)
- Squadron SAE, Wide Cornering
- S2 Pro, Driving/Combo
- S2 Pro, Spot
The patterns in this setup are identical to Recommendation #1, however the S2 are upgraded from a Sport to a Pro, giving you more light output.
Squadron SAE Wide Cornering lights will give you a street legal output. These would act as your normal fog lights, which you can leave on all the time.
S2 Sport, Driving/Combo is equipped with both a wide cornering and spot pattern which provides a nice blend of light for both near field applications and distance lighting.
S2 Sport, Spot is a longer/narrower beam that focuses the light down the trail or road.
RECOMMENDATION #3 (Off-Road Use)
- Squadorn Sport, Spot
- S2 Sport, Wide Cornering
- S2 Sport, Driving/Combo
The Squadron Sport, Spot light provides a longer/narrower beam that focuses light down the trail or road.
S2 Sport, Driving/Combo is equipped with both a wide cornering and spot pattern which provides a nice blend of light for both near field applications and distance lighting.
S2 Sport, Wide Cornering is designed for cornering/dust/fog conditions. While technically not street legal this is a light that can be used for fog light applications where applicable.
RECOMMENDATION #4 (Best Off-Road Use)
- Squadorn Pro, Spot
- S2 Pro, Wide Cornering
- S2 Pro, Driving/Combo
The patterns in this setup are identical to Recommendation #3, however the Squadron & S2 are upgraded from a Sport to a Pro, giving you more light output.
The Squadron Pro, Spot light provides a longer/narrower beam that focuses light down the trail or road.
S2 Pro, Driving/Combo is equipped with both a wide cornering and spot pattern which provides a nice blend of light for both near field applications and distance lighting.
S2 Pro, Wide Cornering is designed for cornering/dust/fog conditions. While technically not street legal this is a light that can be used for fog light applications where applicable.
RECOMMENDATION #5 (*STAFF PICK*)
- Squadron Pro, Driving/Combo
- S2 SAE, Wide Cornering
- S2 SAE, Wide Cornering Amber
This is our favorite setup. This gives you an off-road light (Squadron Pro Drivnig/Combo) and then 2 different SAE lights for street-use. A set of S2 SAE in White for normal driving conditions. Then a set of S2 SAE in Amber for bad weather (fog, snow, rain, etc...). This allows you to select which light to go with based on the weather conditions.
S2 OR SQUADRON | SPORT VS PRO
Many folks are curious what the differences are between the lights. Essentially it's the # of diodes and the light output.
- S2 vs Squadron: S2 lights feature 2 diodes (1x2) whereas the Squadron lights feature 4 diodes (2x2). Available with your choice of lenses.
- Sport vs. Pro: Sports have less lumen over the Pros
- Squadron & Squadron SAE: Squadron lights contain 4 diodes (2x2). They are the most popular light from Baja Designs for use in fog applications. Available in Sports and Pros with your choice of lenses. The SAE variant of the Squadron lights are an SAE rated light which are legal to use on road. They only come in a Wide Cornering Pattern.
|
|
S2 Sport
|
 S2 Pro
|
 Squadron Sport
|
 Squadron Pro
|
S2 Sport: 12w / 1,130 Lumens / Designed Specifically for Near Field and Midfield
S2 Pro: 20w / 2,450 Lumens / Designed Specifically for Near Field, Midfield, Distance
Squadron Sport: 26w / 3,150 Lumens / Designed Specifically for Near Field, Midfield, Distance
Squadron SAE: 22w / 2,480 Lumens / Designed Specifically for Street Legal Output
Squadron Pro: 40w / 4,600 Lumens / Designed Specifically for Near Field, Midfield, Distance
Squadron Racer Edition: 40w / 4,300 Lumens / Designed Specifically for Long Distance Applications
