Description

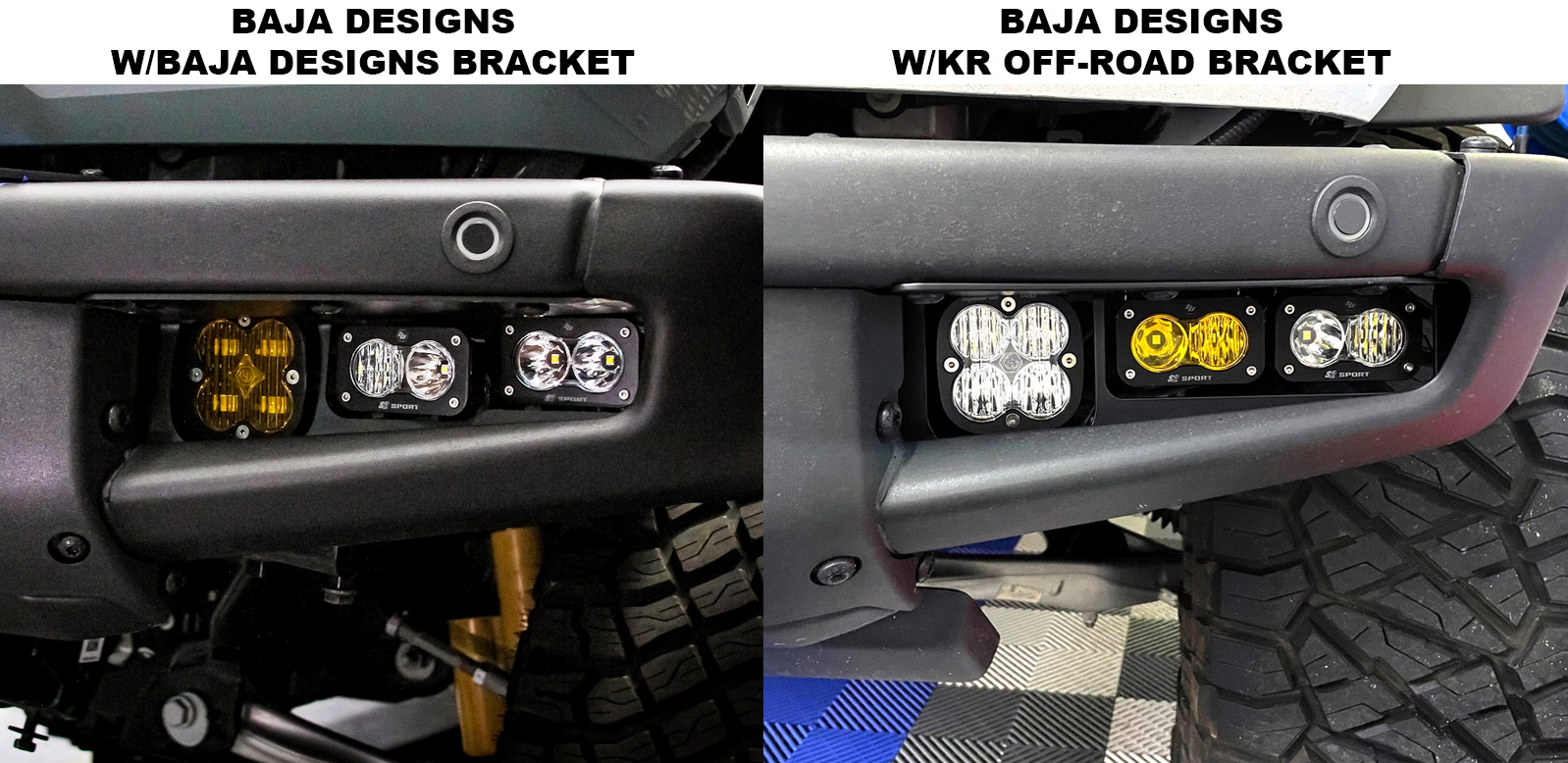

NOTE: If you are looking for the Baja Designs Kit where you can select any combination of lights, click here for the Baja Designs Kit w/KR Off-Road brackets.
Style, fitment, performance, and ease of installation. This kit is designed for the Bronco enthusiast that is looking to light up the trail with ample light, and differentiate yourself from the pack.
This kit specifically utilizes one (1) pair of Squadron Lights and two (2) pairs of S2 Lights. The brackets used to mount this performance oriented light setup ensure no cutting or drilling, and the wiring that is included will allow for the lights to be operated from toggle switches in the cab.
This is a comprehensive kit and does not require any additional parts for installation.

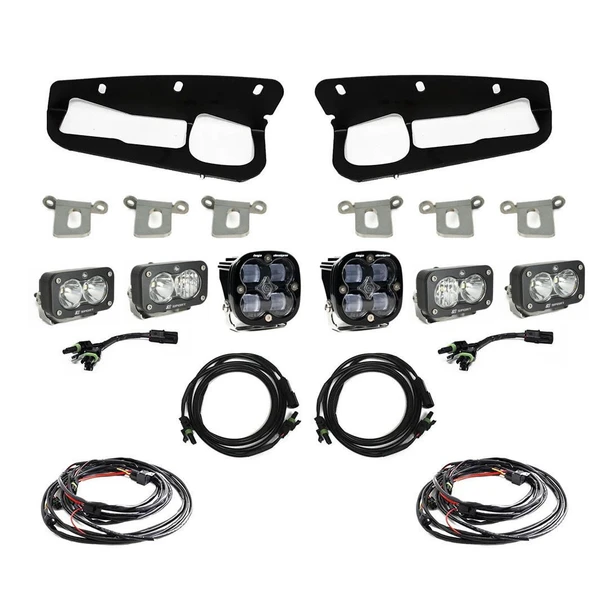

Included in the kit are the following:
- 1 Pair of Baja Designs Fog Pocket Kit Mounting Brackets
- All Required Mounting Hardware
- 3 Pairs of Baja Designs Lights (Varies based on kit selection, see below)
- Wiring Harnesses
- Installation Instructions
Vehicle Fitment:
- 2021+ Ford Bronco (equipped with Modular Bumper)
SPORTSMEN
The Sportsmen Kit includes the following:
- S2 Sport, Driving/Combo Pair
- S2 Sport, Wide Cornering Pair
- Squadron Sport, Spot Pair
- x2 Bracket Fascia Pieces
- x6 Light Mounts
- x2 Upfitter or Toggle Switch Harnesses (If you have factory auxiliary switches, those are upfitters)
- x2 55" Splitters
- x2 small Splitters
PRO
The Pro Kit includes the following:
- S2 Pro, Driving/Combo Pair
- S2 Sport, Wide Cornering Pair
- Squadron Pro, Spot Pair
- x2 Bracket Fascia Pieces
- x6 Light Mounts
- x2 Upfitter or Toggle Switch Harnesses (If you have factory auxiliary switches, those are upfitters)
- x2 55" Splitters
- x2 small Splitters
CLEAR SAE
The Clear SAE Kit includes the following:
- S2 Sport, Driving/Combo Pair
- S2 Sport, Wide Cornering Pair
- Squadron SAE, Wide Cornering Pair
- x2 Bracket Fascia Pieces
- x6 Light Mounts
- x2 Upfitter or Toggle Switch Harnesses (If you have factory auxiliary switches, those are upfitters)
- x2 55" Splitters
- x2 small Splitters
AMBER SAE
The Amber SAE Kit includes the following:
- S2 Sport, Driving/Combo Pair
- S2 Sport, Wide Cornering Pair
- Squadron SAE, Amber Wide Cornering Pair
- x2 Bracket Fascia Pieces
- x6 Light Mounts
- x2 Upfitter or Toggle Switch Harnesses (If you have factory auxiliary switches, those are upfitters)
- x2 55" Splitters
- x2 small Splitters
Specifications (Per Squadron Sport):
Lumens: 3,150 Utilizing 4 LEDs
Wattage/Amps: 26W / 2A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
Specifications (Per Squadron Pro):
Lumens: 4,600 Utilizing 2 Types Of Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
Specifications (Per S2 Sport):
Lumens: 1,130 Utilizing 2 LEDs
Wattage/Amps: 12W / .9A
Dimensions: 2.93" x 1.76" x 1.68"
Weight: 8 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Specifications (Per S2 Pro):
Lumens: 2,450 Utilizing 2 LEDs
Wattage/Amps: 20W / 1.66A
Dimensions: 2.93" x 1.76" x 1.68"
Weight: 8 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
